4"-24" Laser Welded Concrete Cutting Blade for Cured Concrete with Long Working Life
Diamond concrete saw blades specially designed for cutting hard non-metallic materials concrete such as concrete, cured concrete, concrete slabs and pipes, etc.
100% laser welding technology make sure good cutting, and long lifetime. Well exported to USA, Peru, Mexico, Sweden, Uk, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc.
Specification
Diameter: 105mm-600mm
Segment thickness:2.2-4.4mm
Segment height: 7mm, 10mm, 12mm, 15mm.
Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(mm) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
About us:
1. We have rich prducing and exporting experience for around 16 years.
2. Direct manufacturer and 100% export to worldwide (USA, Canada, Thailand, Singapore, South Africa, Kenya, Australia, UK, Spain, Brazil, India, Malaysia, TW, etc)
3. Our range of product: Laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products etc.
Provide the most suitable diamond tools and quickly service is our aim.
JOHNSON TOOLS MANUFACTORY CO.,LTD
SUZHOU JOHNSON IMPORT AND EXPORT CO.,LTD
SKYPE: SINODIATOOLS1
EMAIL: SALES02@JOHNSONTOOLSCN.COM
Product Tags:
|
|

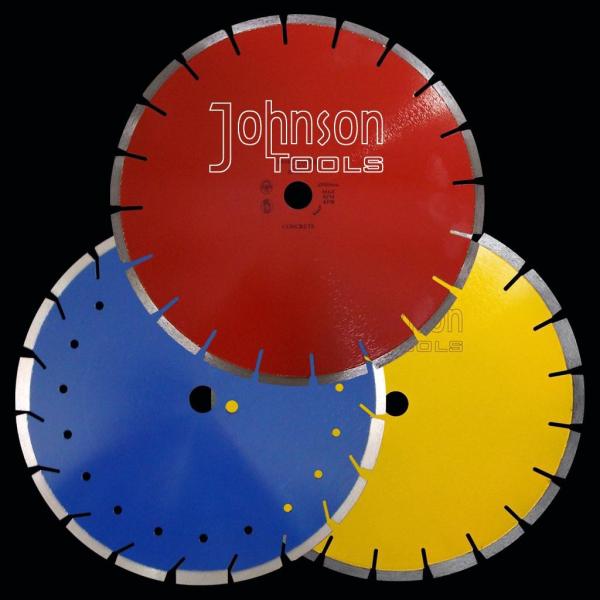

4"-24" Circular Saw Concrete Blade Images
|
